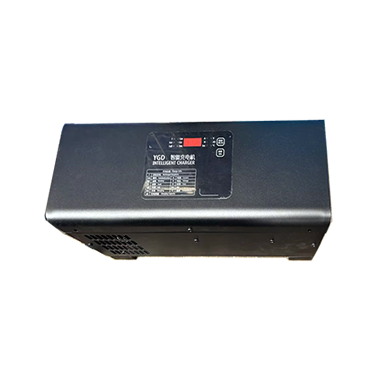

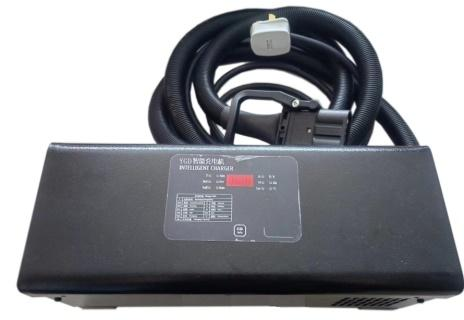

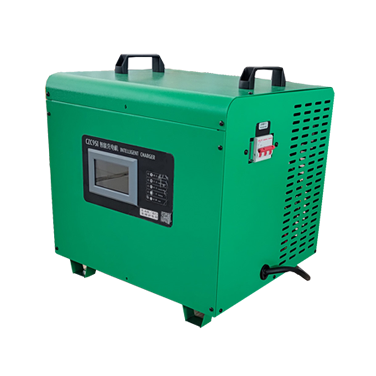

The YGD series intelligent chargers incorporate a high-performance embedded charging control unit to regulate the charging voltage and current. Through parameter optimization in the main circuit module design, the chargers provide continuously adjustable charging currents catering to various lead-acid batteries and lithium-ion batteries, thus addressing diverse charging process specifications.
The charging controller comes with pre-programmed default charging profiles. Additionally, the charging controller can be programmed and store customized charging profiles based on specific user requirements, thus fulfilling tailored charging process requirements upon delivery.
The charging controller constantly monitors a variety of parameters throughout the charging process, thereby equipping the chargers with a comprehensive suite of protective functionalities to ensure a smooth and secure ongoing charging operation.
1. Power failure protection for parameters setup: The system permanently stores user-defined parameter settings, so that they are not lost in the event of a power failure.
2. Parameters such as battery voltage, charging current, capacity, time, and operating status of chargers are clearly visible on nixie tubes;
3. Special charging functionality: Once the charging cable becomes disconnected mid-way through the charging cycle, the charger will automatically shut off (battery disconnection detection).
4. Protection feature: The charger boasts a range of protective features, guarding against malfunctions like open circuits, reversed connections, overcurrent, and overheating.
| Style | YGD-D100v/100A | YGD-D100V/200A | YGD-D100V/300A | YGD-D60V/100A | YGD-D60V/200A | YGD-D60V/400A | YGD-30V/75A | YGD-30V/150A |
| Rated input voltage(V) | Three phase | Three phase | Three phase | Three phase | Three phase | Three phase | Single phase | Single phase |
| Input power(KVA) | 10.6 | 21.3 | 31.9 | 6.4 | 12.8 | 19.1 | 25.5 |
2.5
|
| Max input current(A) | 16.2 | 32.3 | 48.5 | 9.7 | 19.4 | 29.1 | 38.8 |
11.2 |
| Power factor | 0.99 | 0.99 | 0.99 | 0.99 | 0.99 | 0.99 | 0.99 |
0.99 |
| THD | ≤7% | ≤7% | ≤7% | ≤7% | ≤7% | ≤7% | ≤7% |
≤7% |
| Overall efficiency | 0.94 | 0.94 | 0.94 | 0.94 | 0.94 | 0.94 | 0.94 |
0.94 |
| Rated output current(A) | 100 | 200 | 300 | 100 | 200 | 400 | 75 |
75 |
| Max output voltage(V) | 100 | 100 | 100 | 60 | 60 | 60 | 30 |
30 |
| Voltage regulation accuracy | 60-100 | 60-100 | 60-100 | 30-60 | 30-60 | 30-60 | 21-30 |
21-30 |
| Steady flow accuracy | ≤±1% | ≤±1% | ≤±1% | ≤±1% | ≤±1% | ≤±1% | ≤±1% |
≤±1% |
| Work condition temperature(℃) | -25℃-45℃ | |||||||
| Szie(mm) | 300*360*600 | 770*550*1026 | 300*360*600 | 770*550*1026 | 300*360*600 | |||
| Weight(KG) | 40 | 130 | 140 | 40 | 130 | 140 | 35 |
38 |
